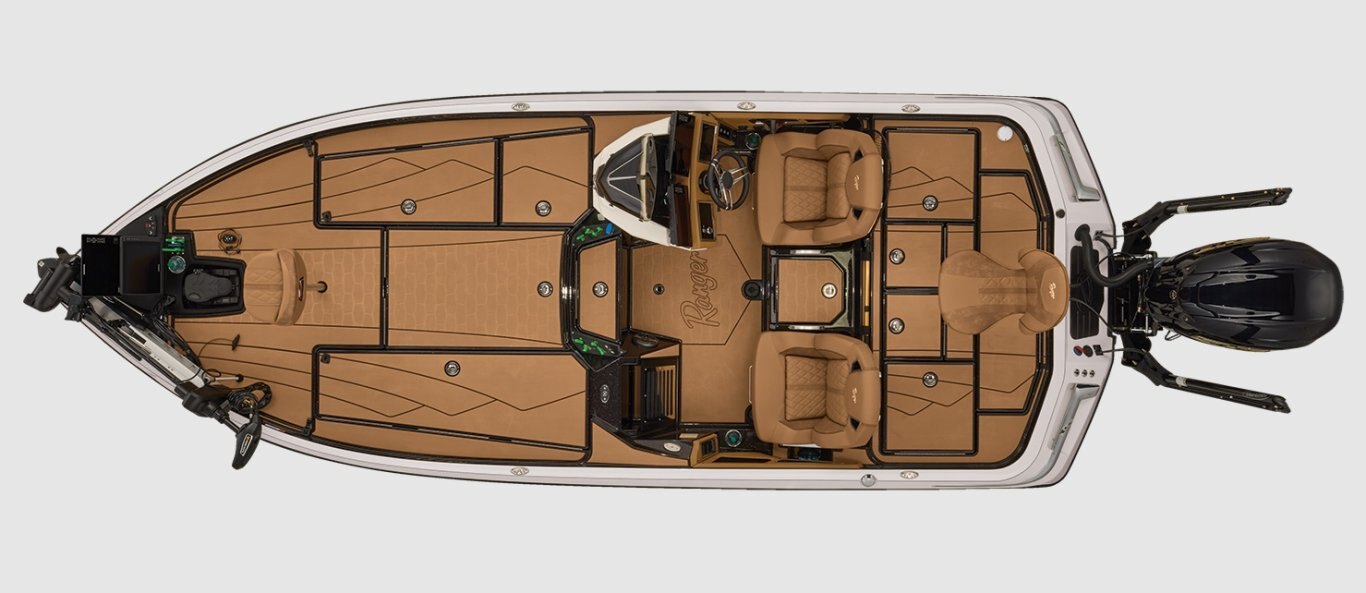

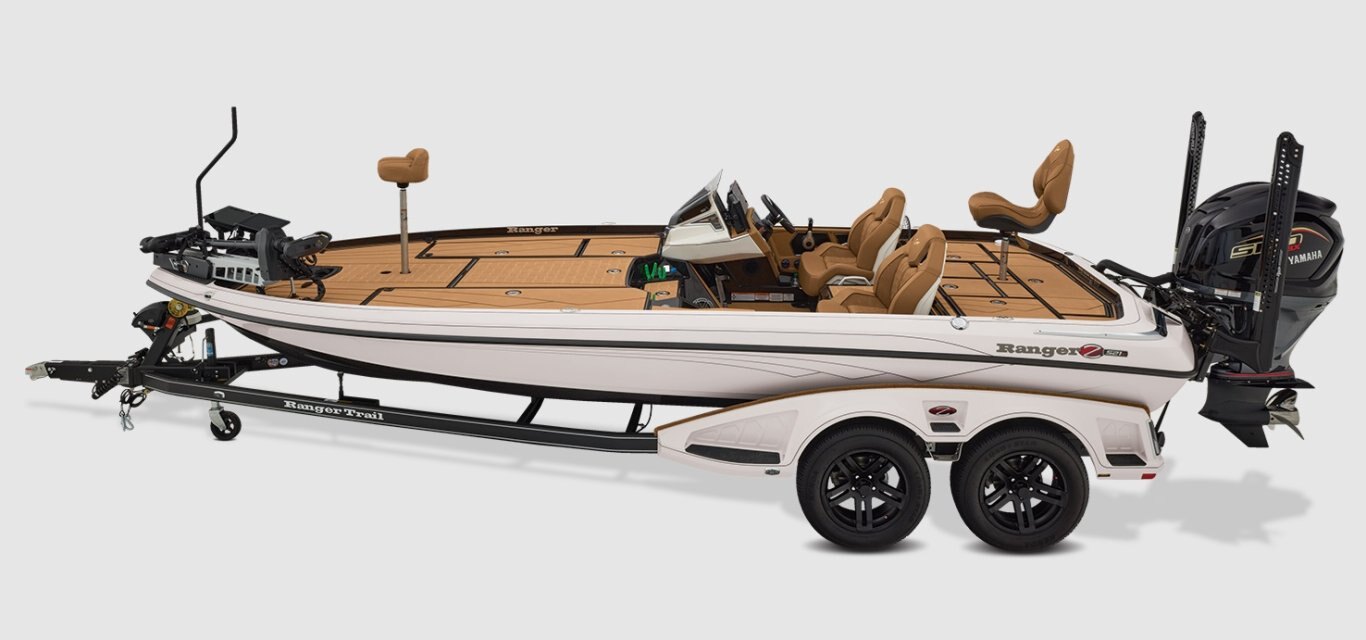

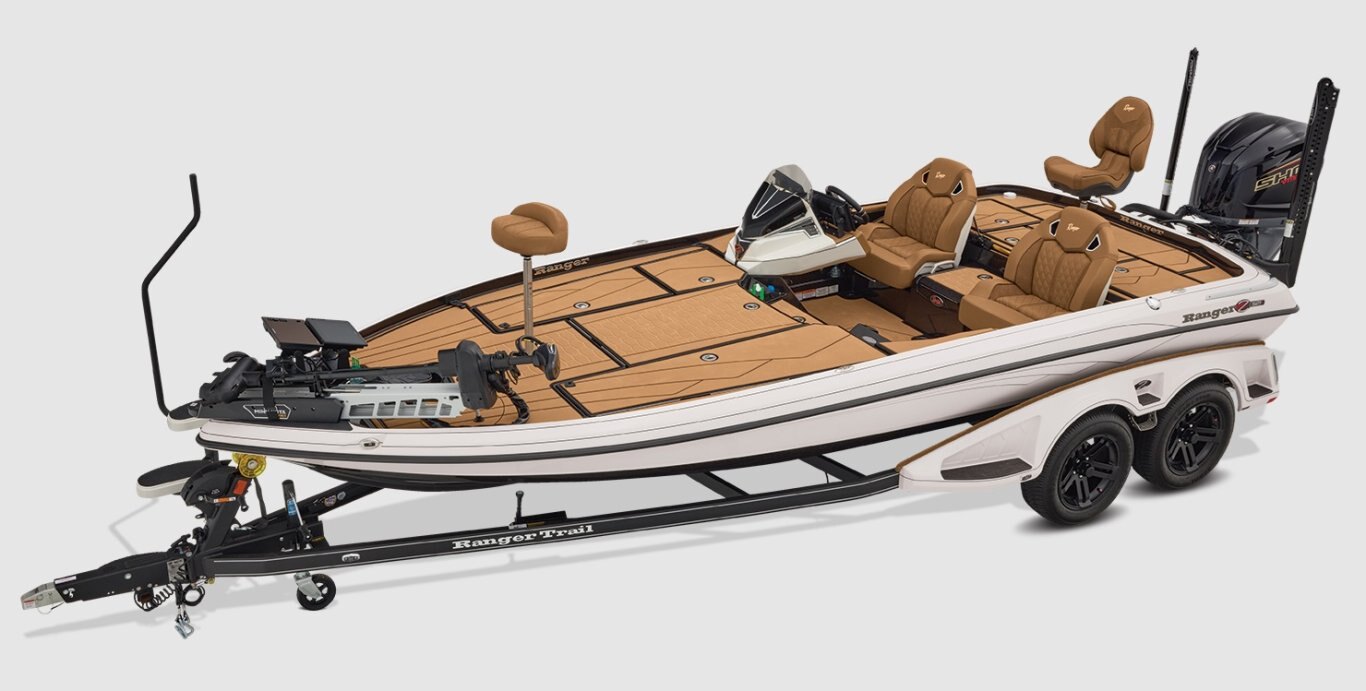

2026 Ranger Z-Comanche Series Z521R Ultra

Call for Price
Overview

Crafted for Champions. Built for Legends

Never has more comfort, style, capability, and technology been packed into one bass boat. The all-new Ranger Z521R Ultra stands apart with one-of-a-kind non-skid Traction pad flooring accented by legendary Comanche stripes, blending beauty and function. Air-Ride Cloud 9™ Soft Ride Seating delivers unmatched comfort in rough water and cold mornings, with interior color packages available in Buckskin, Carbon, and Sandstone. Every inch is designed for refinement, from push-to-close latches and color-matched storage mats to the Ranger Echelon™ rod storage system.

At the helm, innovation takes center stage with the fully remastered console featuring the Ranger RIDE touchscreen interface, digital switching for total control of your trolling motor, outboard, lighting, and security. A leather-wrapped steering wheel connects you to a computer-scanned hull delivering precision handling and an unparalleled ride. This is more than a bass boat—it’s the pinnacle of design, performance, and prestige.

Specifications
Model
Z-Comanche Series
Category Name
Boat
Year
2026
Sale Type
New
Manufacturer
Ranger
Beam
96''
Length
20' 11''
Inside Depth
22''
Trailer GVWR
5400 lbs.
Fuel Capacity
54 gal.
Width On Trailer
102''
Livewell Capacity
31 gal.
Engine Shaft Length
20''
Max. Recommended HP
250 HP
Max. Person Capacity
4 persons
Rod Box Length - Port
8'
Approximate Boat Weight
1850 lbs.
Total Person, Motor, Gear
1650 lbs.
Rod Box Length - Center Row 1
8'
Rod Box Length - Center Row 2
7' 6''
Approximate Length On Trailer W/ Motor Down (May Vary With Engine Model And Set-back Plate)
27' 1''
Approx Length On Trailer W/Motor Down/Swing Tongue Open (May Vary With Engine Model/set-back Plate)
25'
key features

KEY FEATURES

  • Plush and durable Quilted seating
  • Color matched interior options: Buckskin, Carbon & Sandstone
  •  Traction pad flooring on front, rear deck and cockpit
  • New ultra-premium steering wheel with Ranger® embroidery
  • Peerless ride and all-around performance from Z Comanche R Series hull
motor options
AVAILABLE MOTOR
Mercury®
250L Pro XS Torque Master
Yamaha®
VF 250 LB 4.2L VMAX SHB

standard features

Ultra

  • Interior color option Buckskin, Carbon & Sandstone full boat stain-resistant traction pad flooring
  • Quilted color matched Heated Cloud-9™ Air-Ride seating

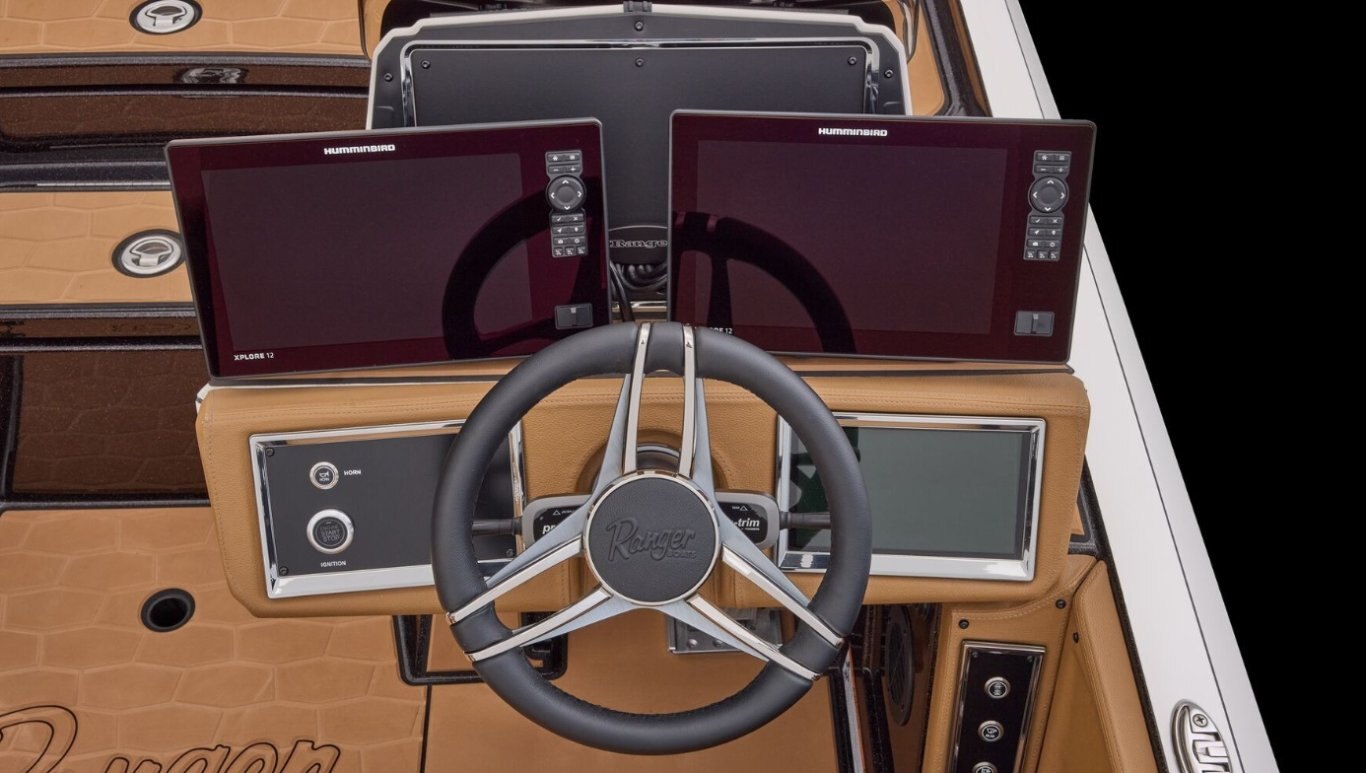

  • Ultra-premium leather-wrapped stainless steel steering wheel
  • Color-matched interior storage compartment mats
  • Peerless ride and all-around performance from Z Comanche R-Series hull

Custom Details

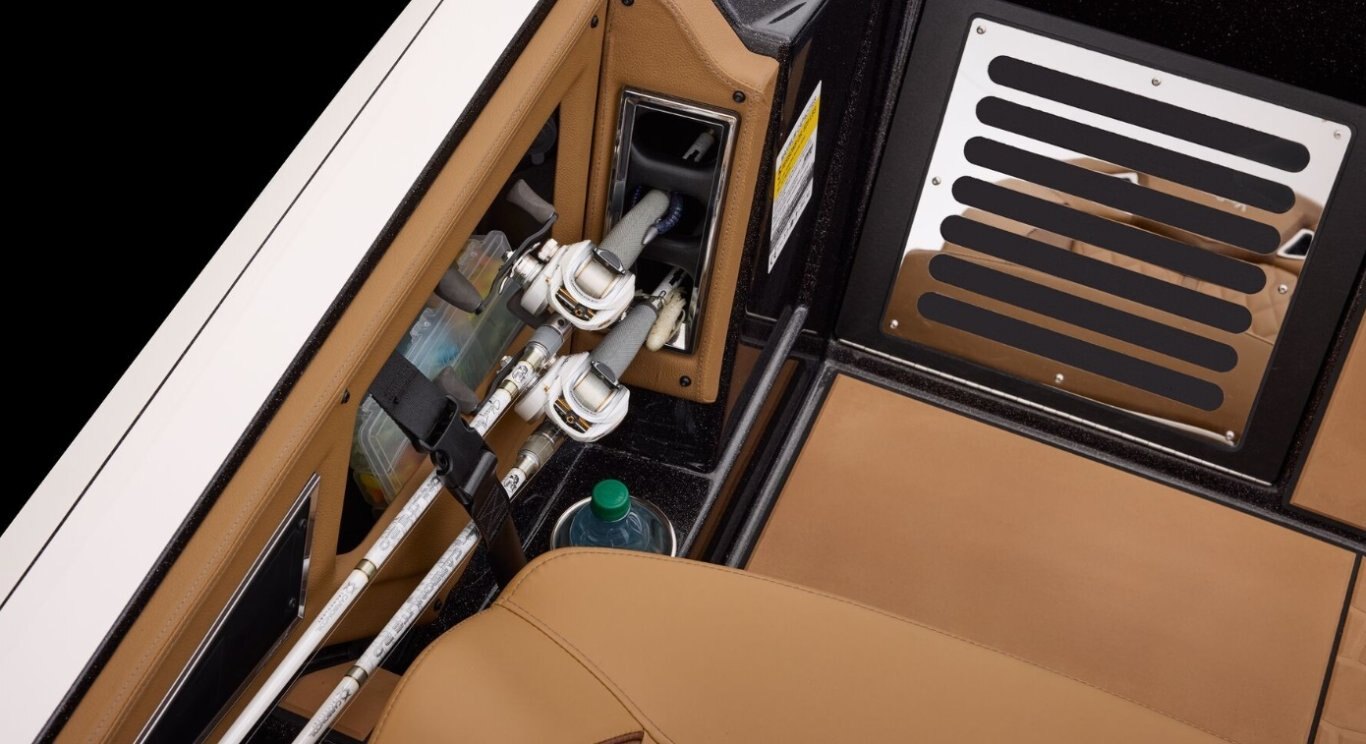

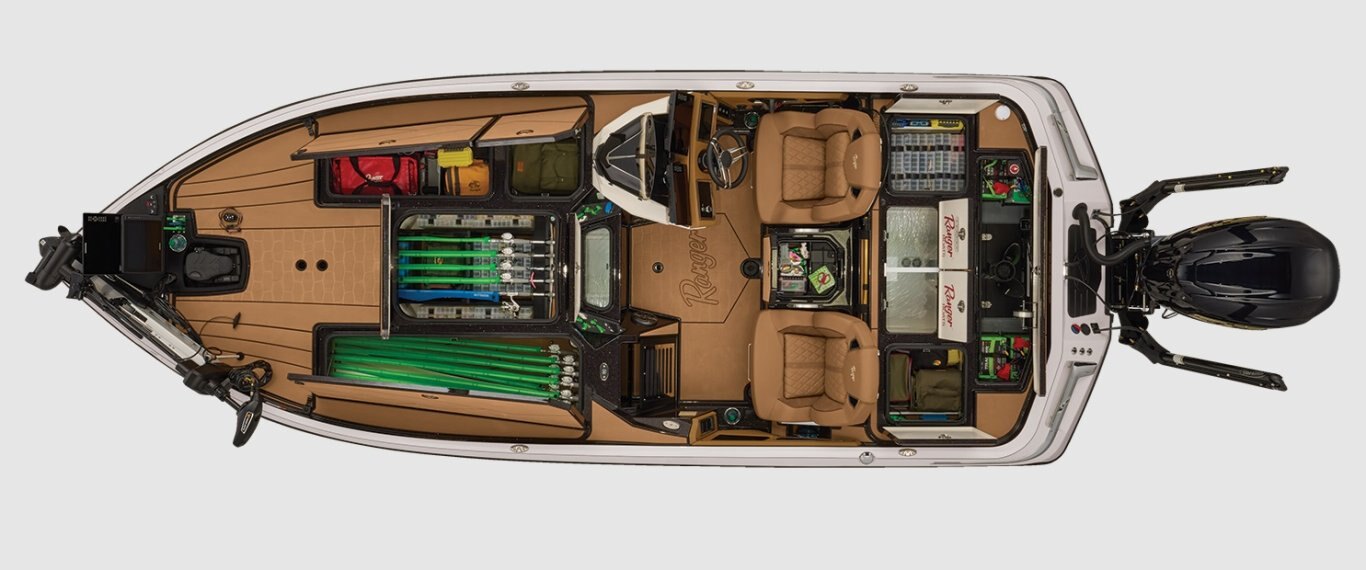

  • Ranger Echelon™ Rod Storage System - 3-tiered port & 2-tiered starboard rod lockers
  • Custom color package
  • Power Ventilation Rod Storage™
  • Insulated 40 qt. step-up cooler

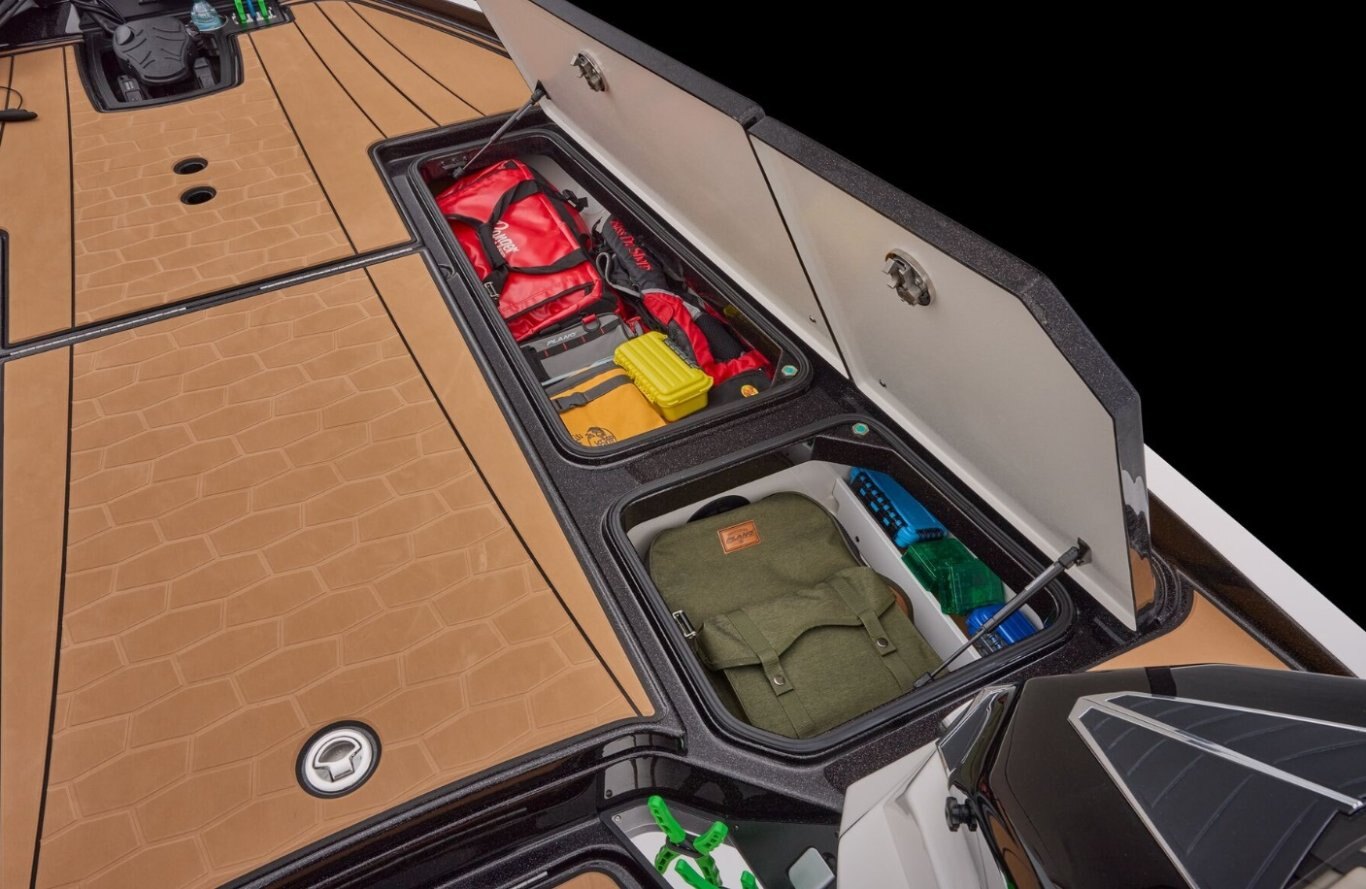

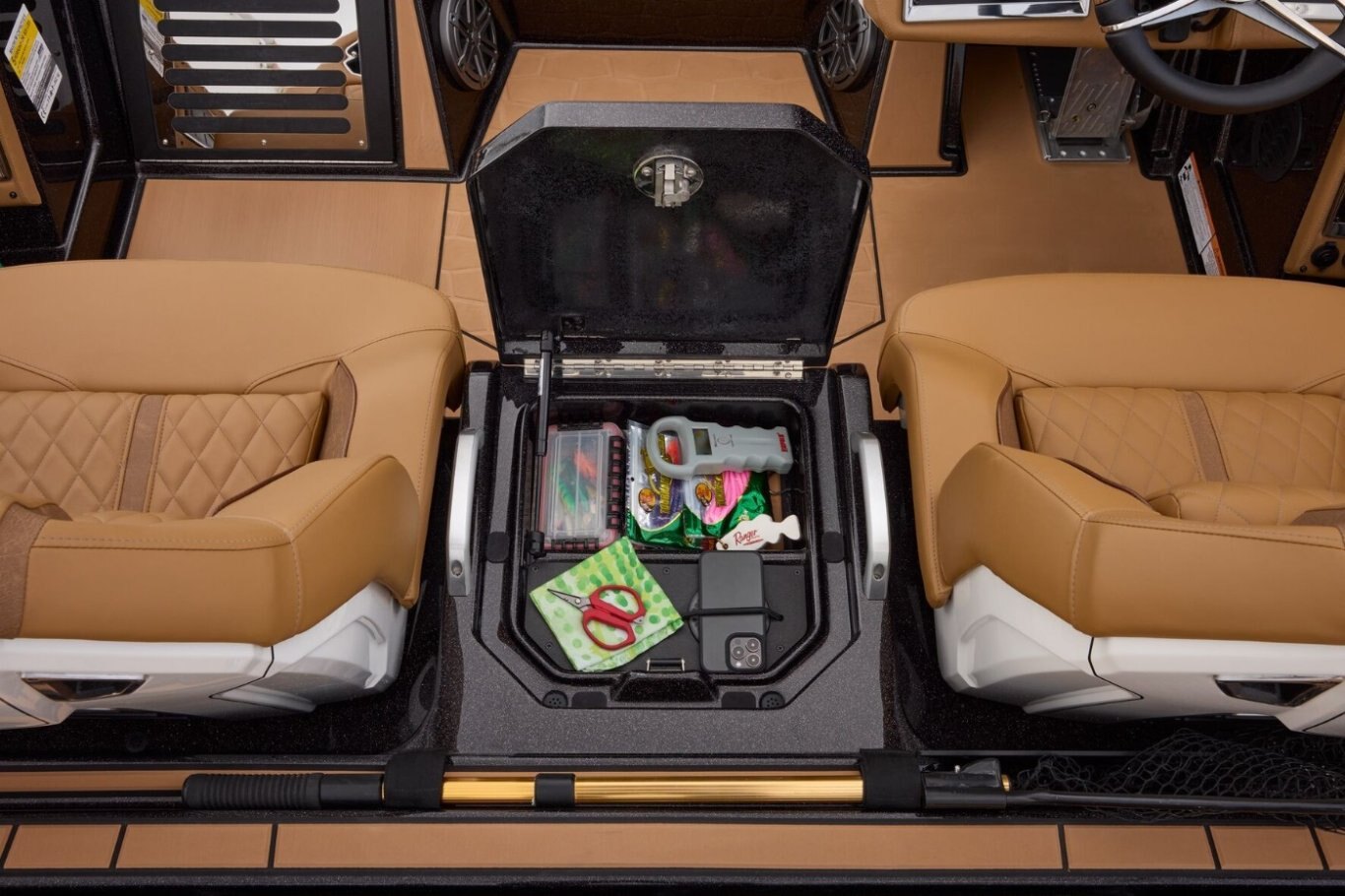

  • Integrated center-storage rod & tackle management system
  • Stainless steel push-to-close locking latches
  • Color-matched cockpit floor and compartment liner mats

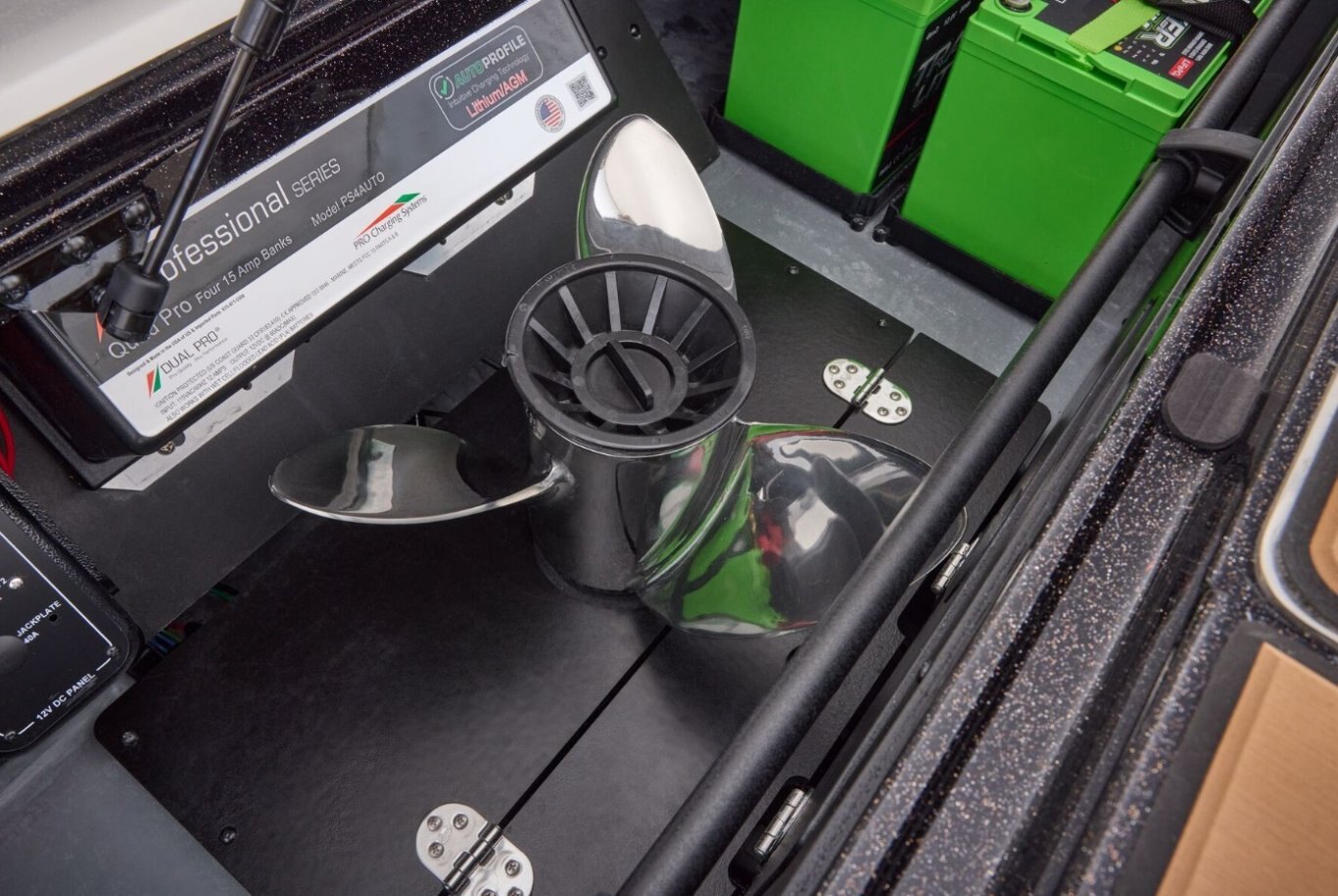

  • Integrated line spooling station under battery lid
  • Ranger® tournament measuring board integrated at front deck step
  • Retractable rod buckles
  • Runnin' rod rack w/ retractable strap
  • Remote drain plug
  • Tool holders at bow and front deck step
  • Pultrusion-reinforced decks, floors, transom & stringers

Power/Performance

  • Pultruded Fiberglass Transom

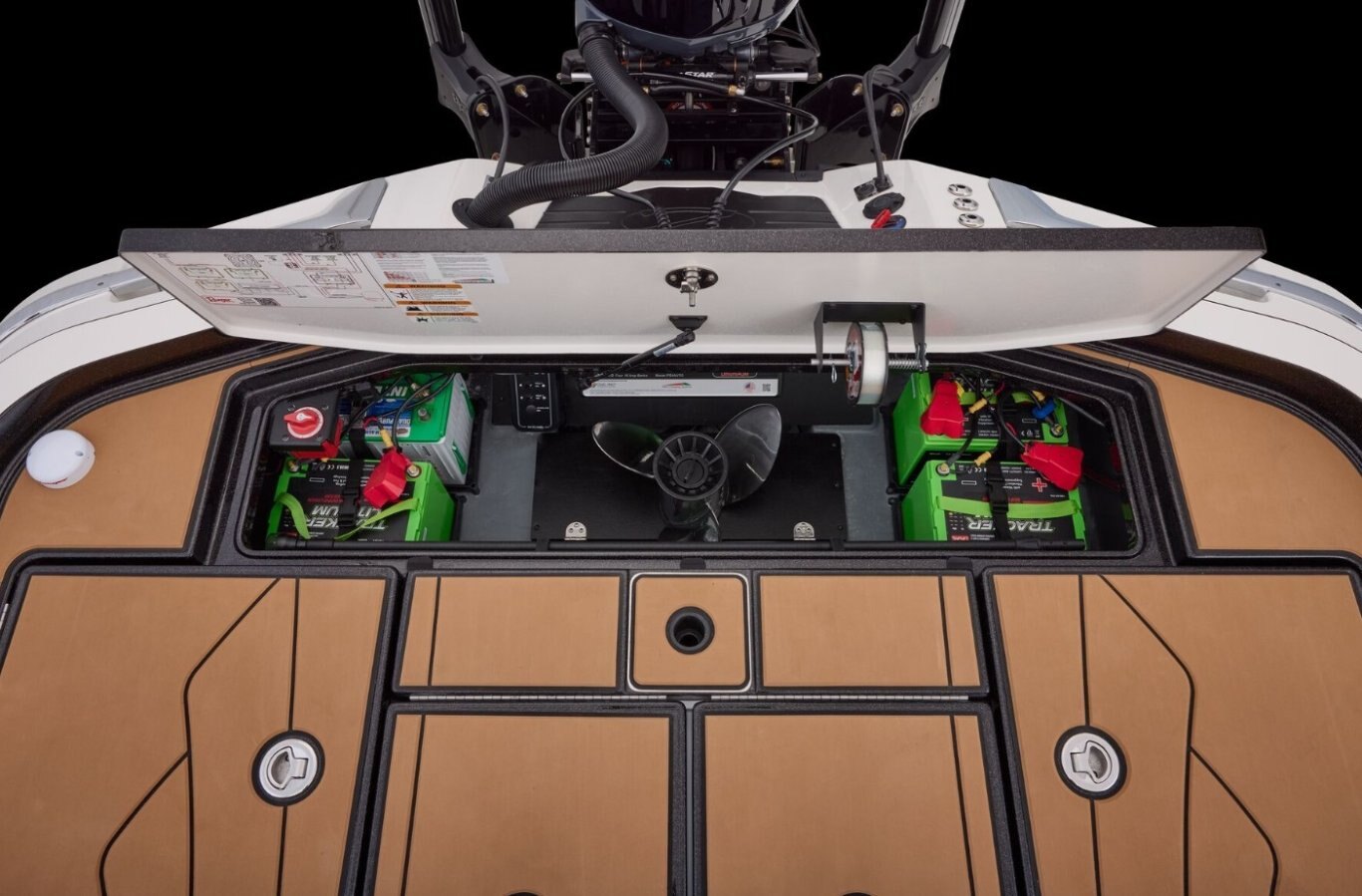

  • (3) Lithium 80AH trolling batteries w/trays
  • AGM Starting battery w/ tray
  • Backup manual ignition keyswitch
  • One-Piece-Feel™ Interloc Construction
  • Integrated engine setback
  • 10" manual setback plate
  • Tilt hydraulic steering

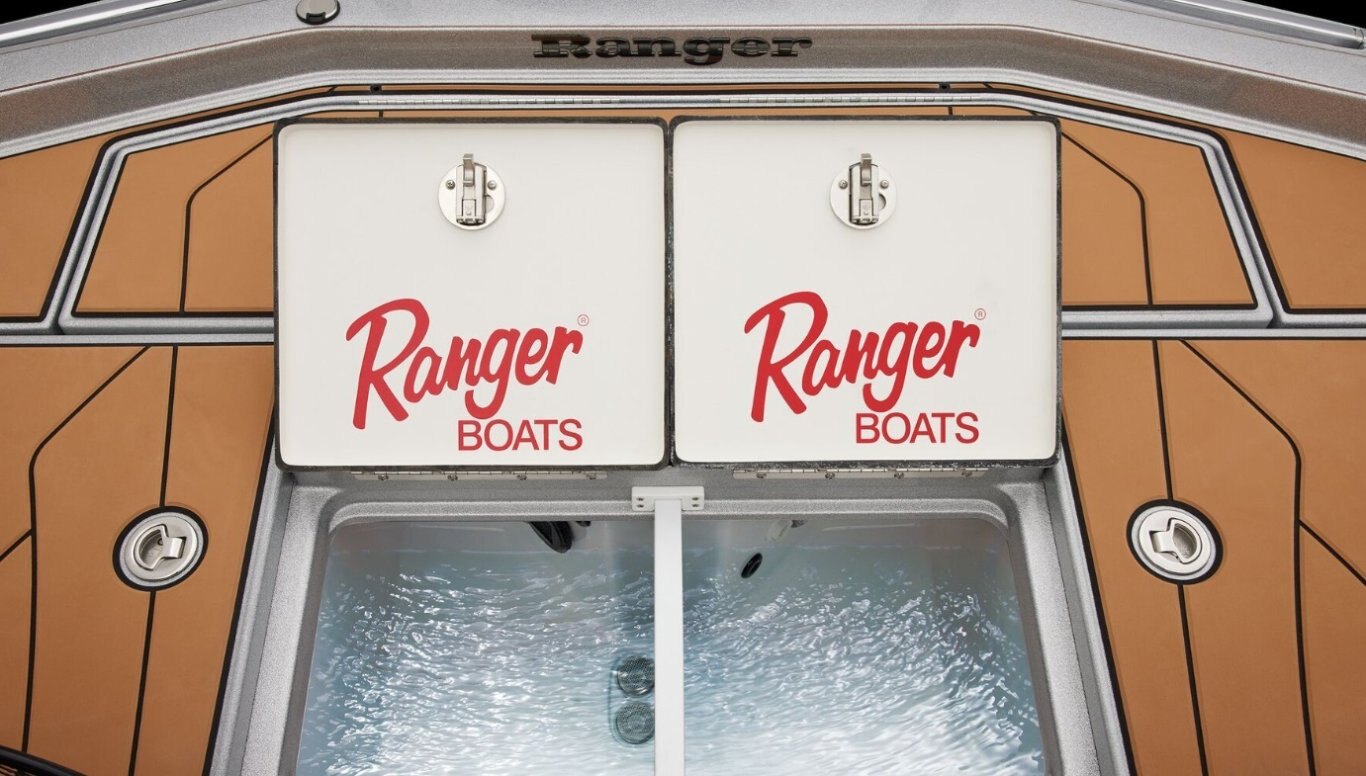

  • Recirculating aerated livewell w/ removable divider & integrated culling tag system
  • Pure Oxygen Generator
  • Venturi Aeration System
  • Recessed trolling motor foot pedal
  • High performance stainless steel prop
  • Foam-filled fiberglass stringer system

Electronics

  • Built to be Yours™ - Available with a wide array of custom-matched engines, trolling motors, electronics, and accessories
  • Ranger® R.I.D.E.™ (Ranger Intelligent Display Engine) -integrated full-boat network control and monitoring via 9" touchscreen
  • Push-to-Start Ignition with proximity Key Fob
  • Solid-state digital keypad at bow with push-button trim switches
  • Ranger® Umbilical™ dedicated bow-to-stern 6-gauge electronics wiring harness w/ 30A breaker
  • Lowrance® Elite FS™ 9 at bow
  • Lowrance® Elite FS™ 9 w/ Active Imaging HD at console
  • Minn Kota® Ultrex QUEST 115lb / 45" / DSC / 36V trolling motor
  • Heavy Duty 6-gauge trolling motor wiring harness w/ 60A breaker
  • Master Power on/off battery disconnect switch
  • Auto-on LED storage compartment lighting & LED courtesy & livewell lighting
  • Integrated LED bow navigation lights & removable LED anchor light
  • Wireless phone charging station in Coin Box

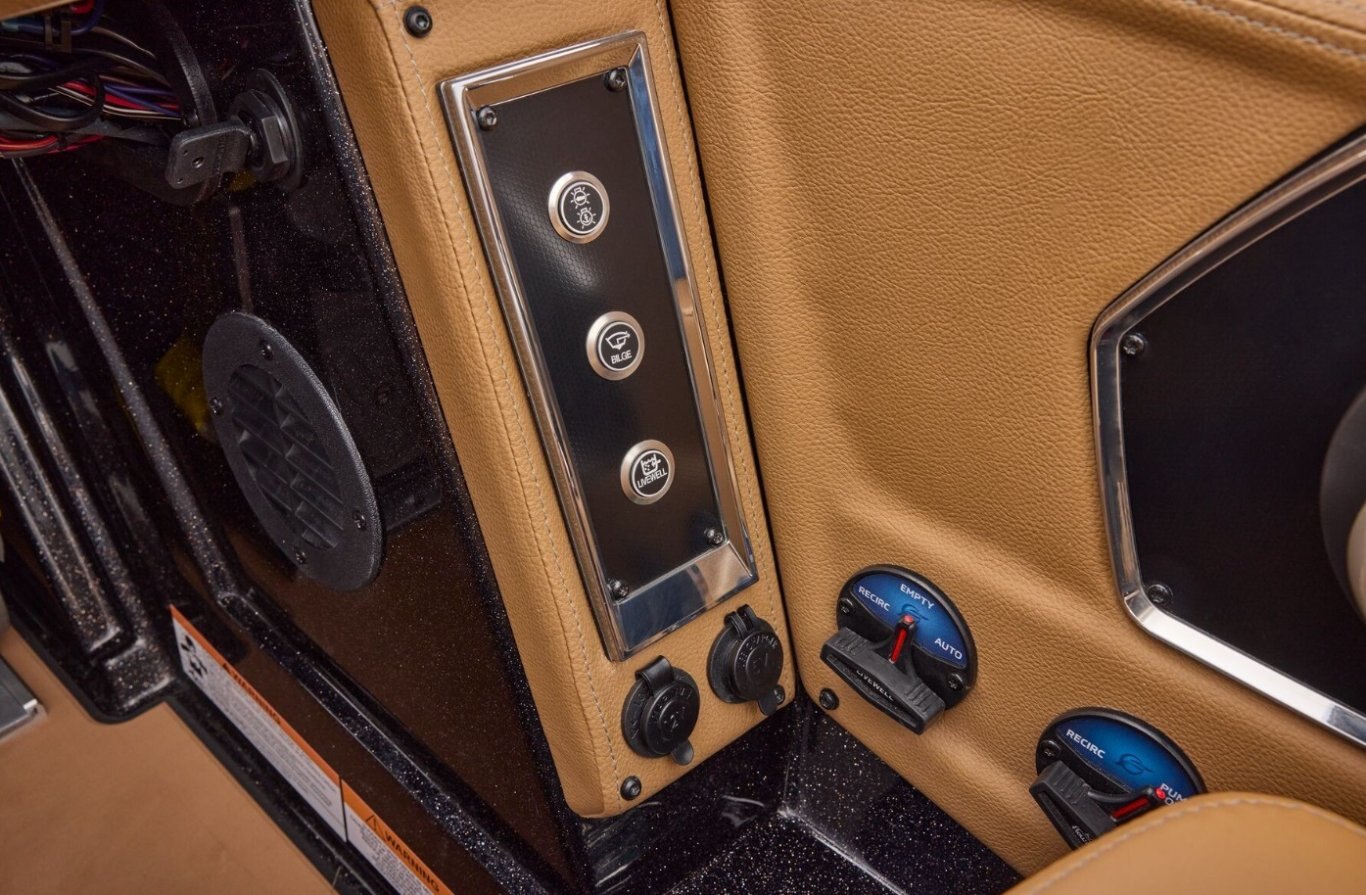

  • 12V power receptacle with USB
  • NOCO™ GB40 jump starter w/ on-board USB charging
  • Dual Pro™ on-board 15A x 4 bank charger w/ auto-detect technology & remote charging port

Safety/Comfort

  • Upright Level Flotation exceeding all USCG & NMMA standards

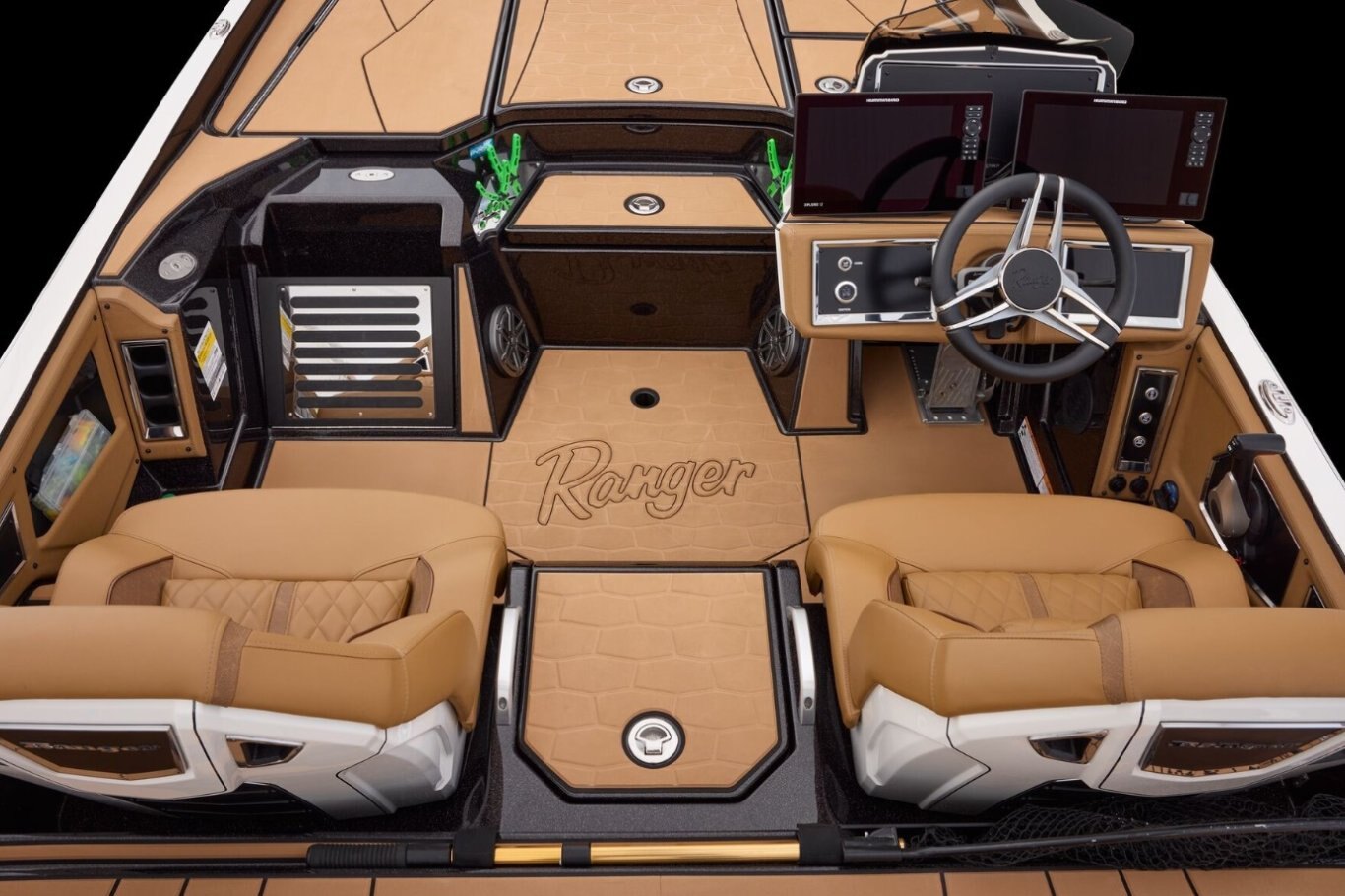

  • Heated Cloud-9™ Air-Ride Driver's Seat

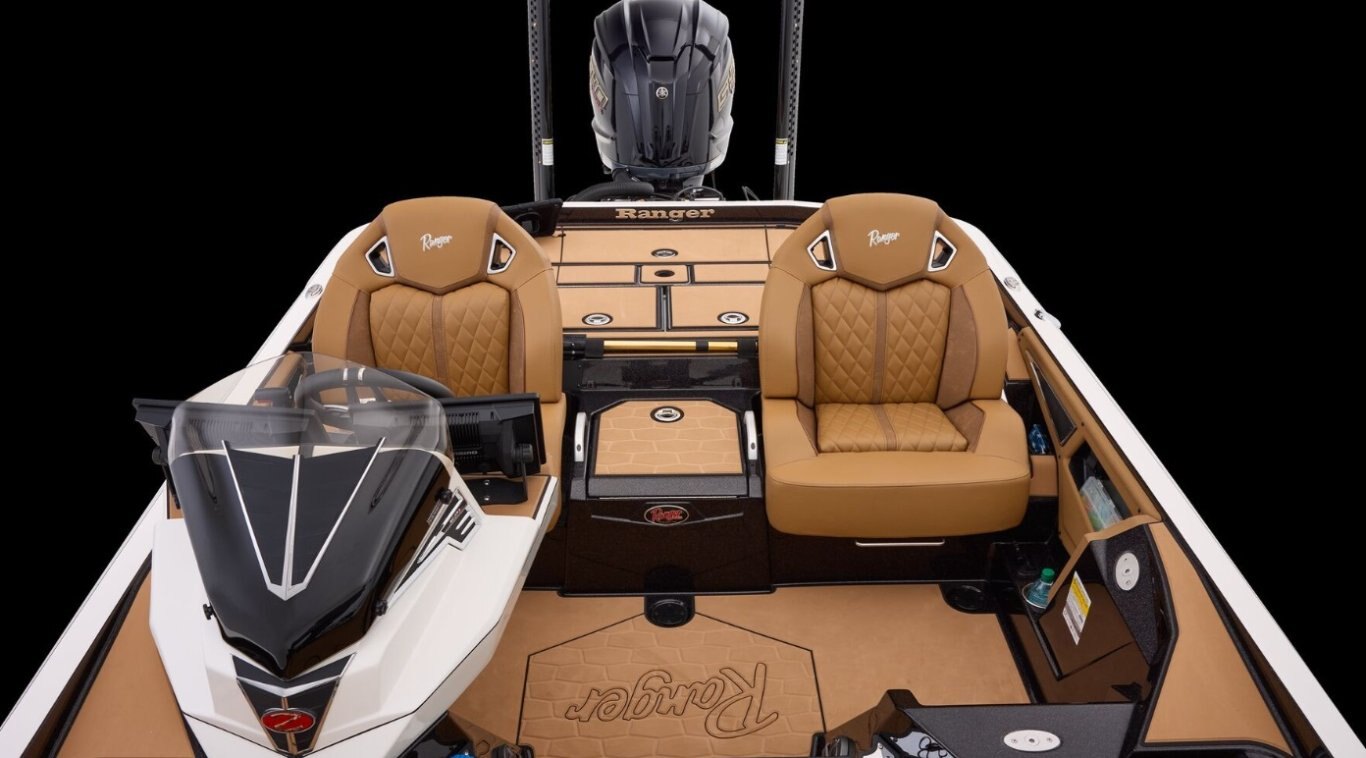

  • Custom-fitted Ranger® Soft Ride Seating™ system with driver & passenger seat slides & color-matched fiberglass seat shells
  • Custom bike seat & SRS fold-down on heavy duty pedestals
  • Padding under traction pad front deck
  • Integrated grab handles
  • Rite Track Keel®
  • Pop-up tie cleats
  • Automatic and manual bilge pumps
  • Integrated re-boarding ladder
  • Skid-resistant material on bow
  • Stainles steel bow & stern eyes
  • Stainless steel seat bases
  • NMMA® certified

Trailer Features

  • Ranger Trail® trailer w/ torsion axles and c-channel frame
  • Ranger® Road Armor Equipped® trailer protectant coating

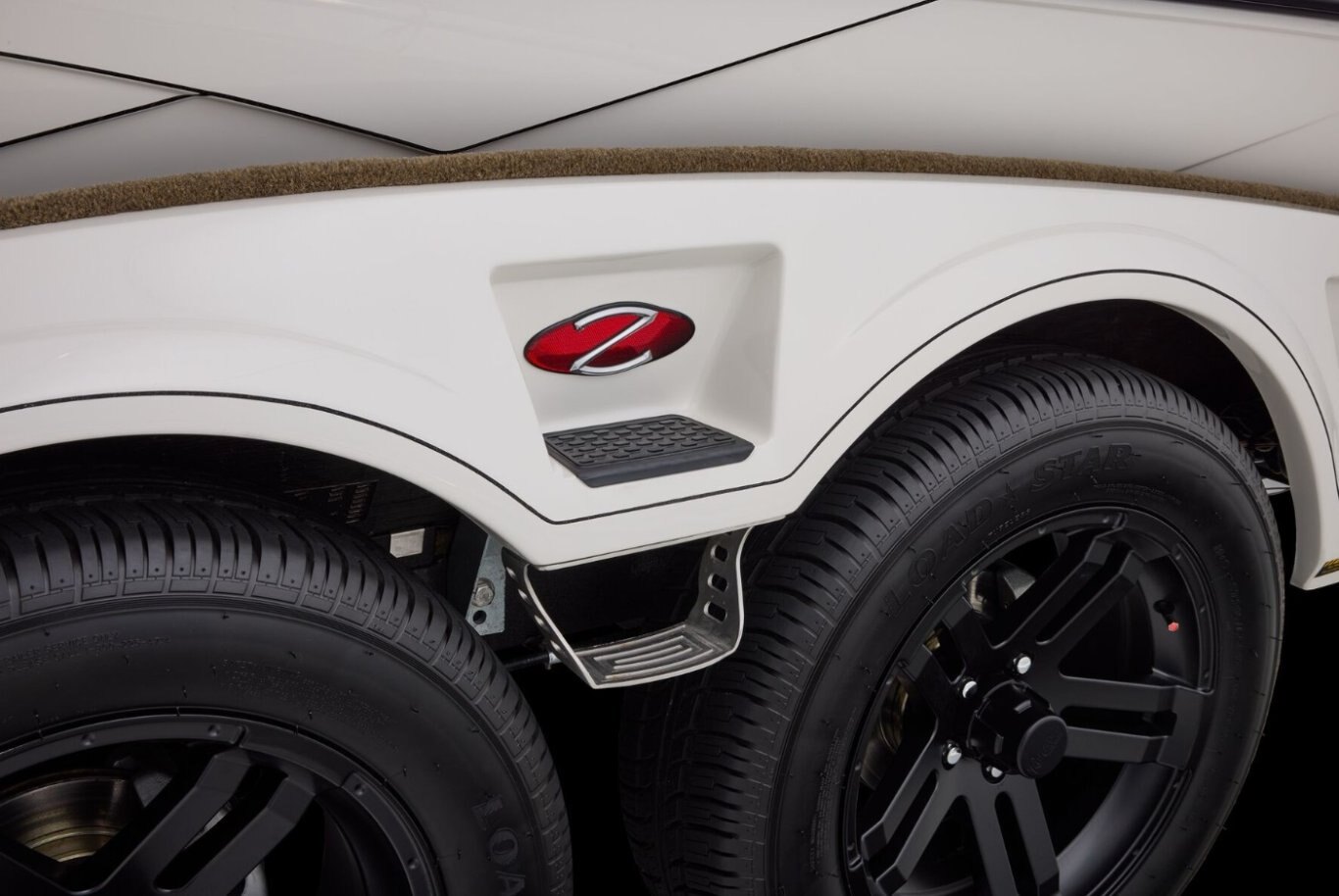

  • 14" Raptor painted & machined aluminum wheels w/ matching spare
  • Ranger Trail® Vault® Hub lubrication system
  • Fiberglass fenders w/ step pads
  • Fiberglass Bow Step - color-matched to fenders
  • Hydraulic surge disc brakes
  • Swing-away tongue
  • Integrated center-swing jack finished in black powdercoat
  • LED lighting
  • LED back-up lights
  • Stainless steel ratcheting tie-downs
  • NMMA®/NATM certified
